Female Pre-insulating Joint(FDD)

You are here: Home » What We Do

Female Pre-insulating Joint(FDD)


E-mail Us  PDF Download
【Prev Products】 【Next Products】

Conductor cross section0.5-1.5mm²(American Wire Gauge 22-16

Maximum current·Imax=10A          Brass





ITEMNO

NAMETAB

Thickness   of material

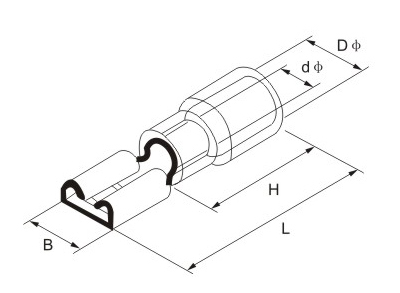

DIMENSION

B

dφ

Dφ

L

H

mm

mm

mm

mm

mm

mm

mm

FDD   1.25-110(5)

0.5x2.8

0.3

3.8

1.7

3.8

19.0





10.0

FDD   1.25-110(8)

0.8x2.8

0.3

3.8

1.7

3.8

19.0

FDD   1.25-187(5)

0.5x4.75

0.35

5.6

1.7

3.8

19.0

FDD   1.25-187(8)

0.8x4.75

0.35

5.6

1.7

3.8

19.0

FDD   1.25-205

0.5x5.2

0.35

6.5

1.7

3.8

20.0

FDD   1.25-250

0.8x6.35

0.4

7.4

1.7

3.8

21.0



Conductor cross section1.5-2.5mm²(American Wire Gauge 16-14

Maximum current·Imax=15A           Brass





ITEMNO

NAMETAB

Thickness   of material

DIMENSION

B

dφ

Dφ

L

H

mm

mm

mm

mm

mm

mm

mm

FDD   2-110(5)

0.5x2.8

0.3

3.8

2.3

4.3

19.0







10.0

FDD   2-110(8)

0.8x2.8

0.3

3.8

2.3

4.3

19.0

FDD   2-187(5)

0.5x4.75

0.35

5.6

2.3

4.3

19.0

FDD   2-187(8)

0.8x4.75

0.35

5.6

2.3

4.3

19.0

FDD   2-205

0.5x5.2

0.35

6.5

2.3

4.3

20.0

FDD   2-250

0.8x6.35

0.4

7.4

2.3

4.3

21.0

FDD   2-312

0.8x8.0

0.4

9.0

2.3

4.3

23.0


Conductor cross section4-6mm²(American Wire Gauge 12-10

Maximum current·Imax=24A           Brass





ITEMNO

NAMETAB

Thickness   of material

DIMENSION

B

dφ

Dφ

L

H

mm

mm

mm

mm

mm

mm

mm

FDD   5.5-187

0.5x4.75

0.4

5.6

3.4

5.7

23.0





14.0

FDD   5.5-250

0.8x6.35

0.4

7.4

3.4

5.7

25.0

FDD   5.5-312

0.8x8.0

0.5

9.0

3.4

5.7

27.0

FDD   5.5-375

1.2x9.4

0.5

10.9

3.4

5.7

29.6
