| 【Prev Products】 | 【Next Products】 |
 |
|
     |
|
Wire range A.W.G |
ITEM NO
| DIMENSION（mm） |
French colors German colors |
Use crimp tool type | |||||

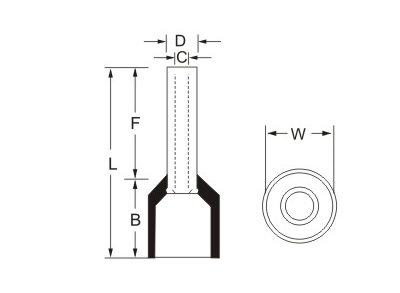

F | L | W | B | D | C | ||||
16 A.W.G 1.5mm² | E1508 | 8.0 | 14.3 |
3.5 |
6.3 |
2.0 |
1.7 |
Black Red |
KT05WF Use 1.5 jaws |
E1510 | 10.0 | 16.3 | |||||||
E1512 | 12.0 | 18.3 | |||||||
E1515 | 15.0 | 21.3 | |||||||
E1518 | 18.0 | 24.3 | |||||||
14 A.W.G 2.5mm² | E2508 | 8.0 | 15.4 |
4.0 |
7.4 |
2.6 |
2.3 |
Gray Blue |
KT05WF Use 2.5 jaws |
E2510 | 10.0 | 17.4 | |||||||
E2512 | 12.0 | 18.4 | |||||||
E2518 | 18.0 | 25.1 | |||||||
E2525 | 25.0 | 32.4 | |||||||
12 A.W.G 4.0mm² | E4009 | 9.0 | 16.4 |
4.5 |
7.4 |
3.2 |
2.8 |
Orange Grey |
KT06WF Use 4.0 jaws |
E4010 | 10.0 | 17.4 | |||||||
E4012 | 12.0 | 19.4 | |||||||
E4018 | 18.0 | 25.4 | |||||||
10 A.W.G 6.0mm² | E6012 | 12.0 | 20.5 | 6.0 | 8.5 | 3.9 | 3.5 | Green Black | KT06WF Use 6.0 jaws |
E6018 | 18.0 | 26.5 | |||||||
8 A.W.G 10mm² | E10-12 | 12.0 | 22.0 |
7.5 |
8.8 |
4.9 |
4.5 | Brown Milky | KT16WF Use 10 jaws |
E10-18 | 18.0 | 26.0 | |||||||
6 A.W.G 16mm² | E16-12 | 12.0 | 22.0 |
8.7 |
10.0 |
6.2 |
5.8 | Milky Green | KT16WF Use 16 jaws |
E16-18 | 18.0 | 28.0 | |||||||
4 A.W.G 25mm² | E25-15 | 15.0 | 27.0 |
11.0 |
12.0 |
7.9 |
7.5 |
Black Brown | |
E25-16 | 16.0 | 28.0 | |||||||
E25-18 | 18.0 | 30.0 | |||||||
E25-22 | 22.0 | 34.0 | |||||||
2 A.W.G 35mm² | E3516 | 16.0 | 30.0 |
12.5 |
14.0 |
8.7 |
8.3 |
Red Beige | |
E3518 | 18.0 | 32.0 | |||||||
E3522 | 22.0 | 36.0 | |||||||
E3525 | 25.0 | 39.0 | |||||||
1/0 A.W.G 50mm² | E50-20 | 20.0 | 36.0 | 16.0 | 15.0 | 10.9 | 10.3 | Green Blue | |
E50-25 | 25.0 | 41.0 | |||||||
2/0 A.W.G 70mm² | E70-20 | 20.0 | 37.0 |
16.0 |
17.0 |
14.3
|
13.5 |
Yellow Yellow | |
E70-25 | 25.0 | 42.0 | |||||||
E70-27 | 27.0 | 44.0 | |||||||
3/0 A.W.G 95mm² |
E95-25 |
25.0 |
47.6 |
18.5 |
19.0 |
15.6 |
14.5 | Red Red
| |
4/0 A.W.G 120mm² | E120-27 | 27.0 | 52.6 | 20.3 | 20.6 | 17.5 | 16.5 | Blue Blue | |
E120-32 | 32.0 | 52.6 | |||||||
250/300 A.W.G 150mm² | E150-27 | 27.0 | 57.6 | 23.4 | 25.6 | 20.6 | 19.6 | Yellow Yellow | |
E150-32 | 32.0 | ||||||||
