Conductor cross section：0.5-1.5mm²（American Wire Gauge 22-16）
Maximum current·Imax=19A Copper0.7mm

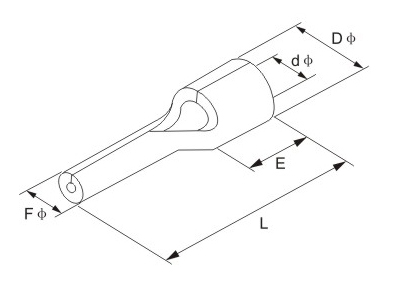

ITEMNO | DIMENSION | ||||
Fφ | L | E | Dφ | dφ | |
mm | mm | mm | mm | mm | |
PTN 1.25-9 | 1.9 | 13.8 |
4.8 |
3.4 |
1.7 |
PTN 1.25-10 | 1.9 | 14.8 | |||
PTN 1.25-12 | 1.9 | 16.8 | |||
PTN 1.25-13 | 1.9 | 17.8 | |||
PTN 1.25-18 | 1.9 | 22.8 | |||
Conductor cross section：1.5-2.5mm²（American Wire Gauge 16-14）
Maximum current·Imax=27A Copper0.8mm
ITEMNO | DIMENSION | ||||
Fφ | L | E | Dφ | dφ | |
mm | mm | mm | mm | mm | |
PTN 2-9 | 1.9 | 13.8 |
4.8 |
4.1 |
2.3 |
PTN 2-10 | 1.9 | 14.8 | |||
PTN 2-12 | 1.9 | 16.8 | |||
PTN 2-13 | 1.9 | 17.8 | |||
PTN 2-18 | 1.9 | 22.8 | |||
Conductor cross section：4-6mm²（American Wire Gauge 12-10）
Maximum current·Imax=48A Copper1.0mm
ITEMNO | DIMENSION | ||||
Fφ | L | E | Dφ | dφ | |
mm | mm | mm | mm | mm | |
PTN 3.5-10 | 2.8 | 16.8 | 6.8 | 5.0 | 3.0 |
PTN 5.5-13 | 2.8 | 19.8 |
6.8 |
5.6 |
3.4 |
PTN 5.5-18 | 2.8 | 24.8 | |||
