Conductor cross section：0.5-1.5mm²（American Wire Gauge 22-16）
Maximum current·Imax=19A Copper0.7mm

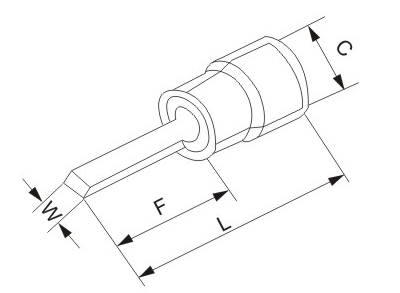

ITEMNO | DIMENSION | |||
W | L | F
| C | |
mm | mm | mm | mm | |
DBV 1.25-10 | 2.3 | 20.0 | 10.0 |
4.3 |
DBV 1.25-11 | 3.0 | 21.0 | 11.0 | |
DBV 1.25-14 | 3.0 | 24.0 | 14.0 | |
DBV 1.25-18 | 2.3 | 28.0 | 18.0 | |
Conductor cross section：1.5-2.5mm²（American Wire Gauge 16-14）
Maximum current·Imax=19A Copper0.8mm
ITEMNO | DIMENSION | |||
W | L | F
| C | |
mm | mm | mm | mm | |
DBV 2-9 | 2.8 | 19.0 | 9.0 |
4.9 |
DBVS 2-14 | 2.4 | 24.0 | 14.0 | |
DBVL 2-14 | 3.0 | 24.0 | 14.0 | |
DBV 2-18 | 2.3 | 28.0 | 18.0 | |
Conductor cross section：2.5-4mm²（American Wire Gauge 14-12）
Maximum current·Imax=37A Copper1.0mm
ITEMNO | DIMENSION | |||
W | L | F
| C | |
mm | mm | mm | mm | |
DBV 5.5-10 | 2.8 | 22.5 | 10.0 |
5.6 |
DBV 5.5-14 | 4.5 | 26.5 | 14.0 | |
DBV 5.5-18 | 4.5 | 30.5 | 18.0 | |
DBV 8-14 | 6.0 | 30.5 | 14.0 | |
