Bullet Shaped Male Pre-insulated fittings(FRD)


【Prev Products】	【Next Products】

Parameters

Conductor cross section：0.5-1.5mm²（American Wire Gauge 22-16）

Maximum current·Imax=10A Materials:Brass

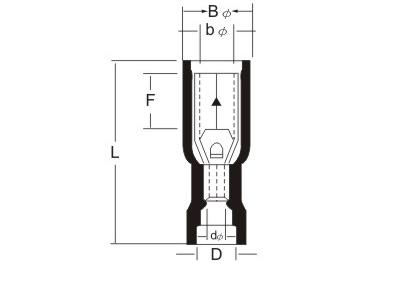

ITEMNO	Thickness of material	DIMENSION						Color
	Thickness of material	bφ	B	Dφ	dφ	F	L	Color
	mm	mm	mm	mm	mm	mm	mm	red
FRD 1.25-156	0.4	4.0	7.7	2.7	1.7	7.3	23.0	red

Conductor cross section：1.5-2.5mm²（American Wire Gauge 16-14）

Maximum current·Imax=15A

ITEMNO	Thickness of material	DIMENSION						Color
	Thickness of material	bφ	B	Dφ	dφ	F	L	Color
	mm	mm	mm	mm	mm	mm	mm	blue
FRD 2-156	0.4	4.0	7.7	3.3	2.3	7.3	23.8
FRD 2-195	0.4	5.0	8.7	3.3	2.3	7.3	23.8

Conductor cross section：4-6mm²（American Wire Gauge 12-10）

Maximum current·Imax=24A

ITEMNO	Thickness of material	DIMENSION						Color
	Thickness of material	bφ	B	Dφ	dφ	F	L	Color
	mm	mm	mm	mm	mm	mm	mm	yellow
FRD 5.5-156	0.4	4.0	7.7	4.5	3.4	7.3	25.5
FRD 5.5-195	0.4	5.0	8.7	4.5	3.4	7.3	25.5
