Conductor cross section：0.5-1.5mm²（American Wire Gauge 22-16）
Maximum current·Imax=10A Brass0.4mm

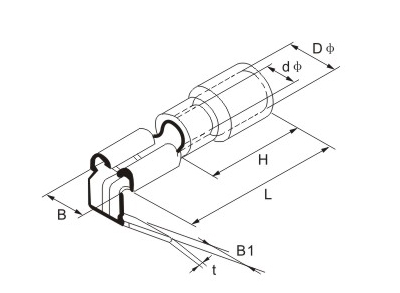

ITEMNO | NAMETAB | DIMENSION | |||||
t | B | B1 | H | Dφ | dφ | L | |
mm | mm | mm | mm | mm | mm | mm | |
0.8x6.35 | 7.4 | 6.3 | 10.0 | 3.8 | 1.7 | 21.5 | |
Conductor cross section：1.5-2.5mm²（American Wire Gauge 16-14）
Maximum current·Imax=15A
ITEMNO | NAMETAB | DIMENSION | |||||
t | B | B1 | H | Dφ | dφ | L | |
mm | mm | mm | mm | mm | mm | mm | |
PBDD 2-250 | 0.8x6.35 | 7.4 | 6.3 | 10.0 | 4.3 | 2.3 | 21.5 |
Conductor cross section：4-6mm²（American Wire Gauge 12-10）
Maximum current·Imax=24A
ITEMNO | NAMETAB | DIMENSION | |||||
t | B | B1 | H | Dφ | dφ | L | |
mm | mm | mm | mm | mm | mm | mm | |
PBDD 5.5-250 | 0.8x6.35 | 7.4 | 6.3 | 14.0 | 5.7 | 3.4 | 25.0 |
