Conductor cross section：0.5-1.5mm²（American Wire Gauge 22-16）
Maximum current·Imax=19A Copper0.7mm

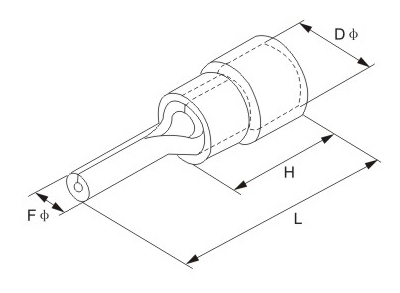

ITEMNO | DIMENSION |
COLOR | |||
Fφ | L | H | Dφ | ||
mm | mm | mm | mm | ||
PTV 1.25-9 | 1.9 | 19.0 |
10.0 |
4.3 |
Red |
PTV 1.25-10 | 1.9 | 20.0 | |||
PTV 1.25-12 | 1.9 | 22.0 | |||
PTV 1.25-13 | 1.9 | 23.0 | |||
PTV 1.25-18 | 1.9 | 28.0 | |||
Conductor cross section：1.5-2.5mm²（American Wire Gauge 16-14）
Maximum current·Imax=27A Copper0.8mm
ITEMNO | DIMENSION |
COLOR | |||
Fφ | L | H | Dφ | ||
mm | mm | mm | mm | ||
PTV 2-9 | 1.9 | 19.0 |
10.0 |
4.9 |
Blue |
PTV 2-10 | 1.9 | 20.0 | |||
PTV 2-12 | 1.9 | 22.0 | |||
PTV 2-13 | 1.9 | 23.0 | |||
PTV 2-18 | 1.9 | 28.0 | |||
Conductor cross section：4-6mm²（American Wire Gauge 12-10）
Maximum current·Imax=48A Copper1.0mm
ITEMNO | DIMENSION |
COLOR | |||
Fφ | L | H | Dφ | ||
mm | mm | mm | mm | ||
PTV 3.5-10 | 2.8 | 22.5 | 12.5 | 6.2 |
Yellow |
PTV 5.5-13 | 2.8 | 25.5 |
12.5 |
6.7 | |
PTV 5.5-18 | 2.8 | 30.5 | |||
