Female full-insulating joint(FDFD)

You are here: Home » What We Do

Female full-insulating joint(FDFD)


E-mail Us  PDF Download
【Prev Products】 【Next Products】

Conductor cross section0.5-1.5mm²(American Wire Gauge 22-16

Maximum current·Imax=10A





ITEMNO

NAMETAB

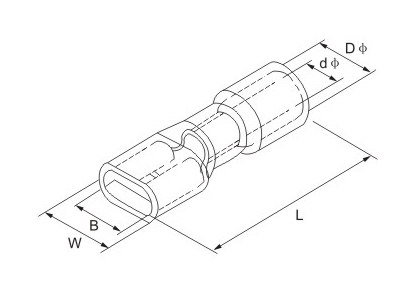

DIMENSION

W

B

Dφ

dφ

L

mm

mm

mm

mm

mm

mm

FDFD   1.25-110(5)

0.5x2.8

6.2

3.2

4.0

1.7

19.0

FDFD   1.25-187(5)

0.5x4.75

7.8

5.0

4.0

1.7

20.0

FDFD   1.25-187(8)

0.8x4.75

7.8

5.0

4.0

1.7

20.0

FDD   1.25-250

0.8x6.3

9.3

6.6

4.0

1.7

22.5



Conductor cross section1.5-2.5mm²(American Wire Gauge 16-14

Maximum current·Imax=15A





ITEMNO

NAMETAB

DIMENSION

W

B

Dφ

dφ

L

mm

mm

mm

mm

mm

mm

FDFD   2-110(5)

0.5x2.8

6.2

3.2

4.5

2.3

19.0

FDFD   2-187(5)

0.5x4.75

7.8

5.0

4.5

2.3

20.0

FDFD   2-187(8)

0.8x4.75

7.8

5.0

4.5

2.3

20.0

FDD2-250

0.8x6.3

9.3

6.6

4.5

2.3

23.0


Conductor cross section4-6mm²(American Wire Gauge 12-10

Maximum current·Imax=24A           Brass





ITEMNO

NAMETAB

DIMENSION

W

B

Dφ

dφ

L

mm

mm

mm

mm

mm

mm

FDFD   5.5-187(5)

0.5x4.8

7.8

5.0

5.7

3.4

23.0

FDFD   5.5-250

0.8x6.3

9.3

6.6

5.7

3.4

23.0

FDFD5.5-375

1.2x9.4

13.0

10.9

5.7

3.4

30.0
